Cast-Iron Gate Valves: Practical Features, Benefits, and Uses
Might one quality valve shrink maintenance time and keep water networks running longer?
At Yaxing Valve, I manufacture and supply Cast Iron Gate Valve Manufacturer and back their performance and service for U.S. clients. The range is designed for a long service life in public water and light industrial applications.
Each gate valve has a robust iron body, a machined wedge path, and straightforward handwheel operation. This yields trustworthy isolation, serviceable upkeep, and steady performance in building mechanical rooms, fire protection loops, and utility distribution.
I support specifiers with fast submittals and transparent details: sizes, end connections, pressure classes, and accessories. We retain cart and preference data (cookies) to make reorders simple.
When you want a practical replacement or budget-smart choice for new work, weigh these cast iron gate valve benefits versus existing hardware to see lifecycle value and real-world fit.
Reliable Flow Control: Why I Trust Yaxing Valve Cast Iron Gate Valves
I verify each Yaxing Valve product myself to confidently recommend it for demanding U.S. applications.

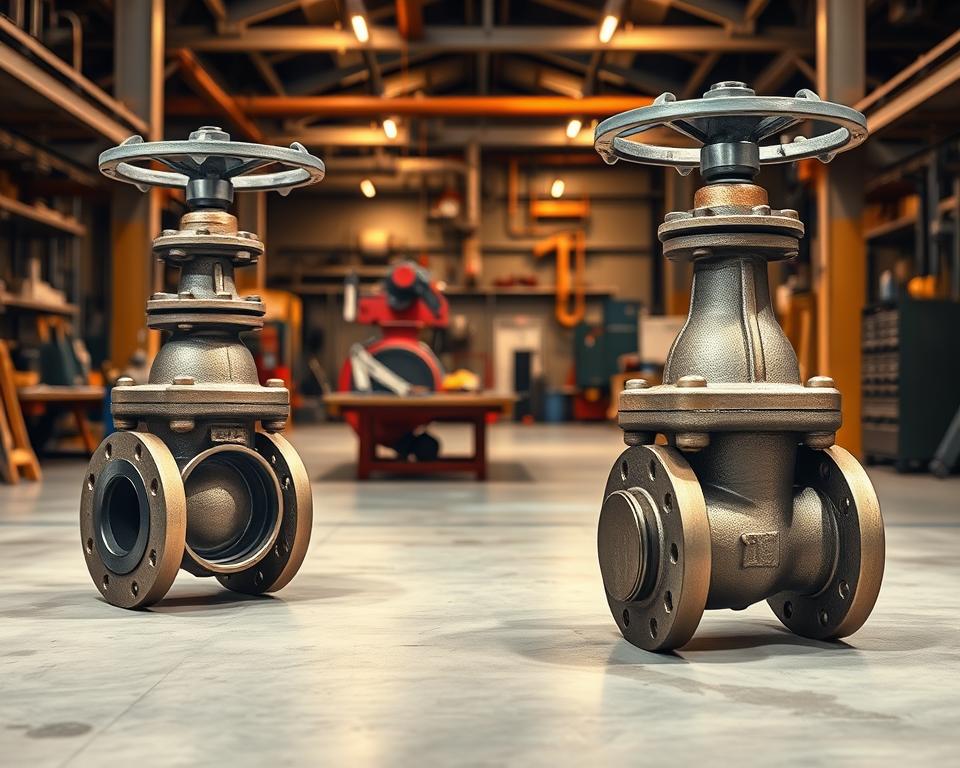

Industrial performance anchored by a robust cast-iron body
Every valve features a strong cast-iron body that resists load-induced deformation. Metal-to-metal seating and precise machining ensure tight shutoff when customers need it most.
Shaped for maximum flow and low pressure drop
A streamlined flow path cuts turbulence and pressure drop. That helps pumps run more efficiently and lowers energy use across systems.
- I confirm dimensions and tests against ANSI standards and internal QA.
- I finish stem, wedge, and bonnet interfaces to cut friction and keep handwheel torque steady over years of use.
- Body thickness targets balance durability with manageable handling weight.
- My product support documents tests and standards so procurement can finalize orders fast.
| Design Feature | Primary Benefit | Spec Point |
|---|---|---|
| Cast-iron body | High rigidity | Stable geometry targets met |
| Streamlined gate | Lower pressure loss | Boosts pump operating efficiency |
| Refined stem and handwheel | Low-effort operation | Steady torque over service life |
| Documentation | Speedier submittal clearance | ANSI-aligned test reports |
Cast Iron Gate Valves—Materials, Design Details, and Key Performance
I break down body, sealing, and stem options to simplify selection and ordering.
Body/Bonnet/Wedge Materials
I define the material stack-up plainly: a cast iron body and bonnet, a precision-machined wedge, and a metal-to-metal seat interface for dependable shutoff in water service and general industry.
Stem/Handwheel configurations
For compact layouts, I offer non-rising and inside-screw stem options. Each screw thread form and packing arrangement is documented in my product details.
Standards and performance limits
I publish qualified pressure and temperature ranges and align end connections to common ANSI standards to help engineers confirm fit without additional drawings.
- Handwheel and stem interface tuned for steady torque.
- Smooth internal geometry reduces headloss.
- Clear series IDs and submittal specs accelerate approvals.
| Part | Material / Type | Limit | Comments |
|---|---|---|---|
| Body & Bonnet | Cast iron | Up to 150 psi | ANSI flange dimensions; welded or bolted |
| Valve wedge | Precision-machined metal | −20° to 180°F service | Metal seat with low-loss finish |
| Valve stem | Non-rising / inside screw | N/A | Documented thread and packing in datasheet |
| Product series | Series YX-100, YX-200 | Sizes 2″–12″ | Part numbers simplify bidding |
Applications, Installation, and Day-to-Day Operation
I guide contractors and owners on where these valves perform best in modern water and utility loops. My goal is to make selection, installation, and operating checks straightforward so crews finish commissioning without call-backs.
Waterworks, building systems, and general industry applications
Use a full-bore unit where low restriction matters — long mains, service feeds, and bypass lines benefit the most.
Where vertical space is constrained, use non-rising or inside-screw stems in mechanical rooms and process loops.
Installation guidelines
Protect the valve body during handling; lift at rated points and avoid flange stress. Confirm end alignment before final bolt torquing to prevent leaks and distortion.
Select compatible gaskets, torque in a cross pattern, and space supports to prevent line sag.
O&M notes
Position the handwheel for easy access and verify free movement after packing tweaks.
Do periodic under-pressure torque checks, inspect wedge/packing, and verify pressure/temperature versus media. Log tag numbers in your maintenance account and link work orders in your CMMS.
| Area | What to Do | Phase | Benefit |
|---|---|---|---|
| Use-case mapping | Select full-bore for mains; non-rising for tight spaces | Design phase | Reduced headloss and saved space |
| Handling and install | Lift properly, align, then cross-torque bolts | Install | Avoids stress-related leaks |
| Commissioning checks | Check smooth handwheel feel and pressure-test | Commissioning & routine | Predictable operation and tight shutoff |
| Maintenance records | Tag valves and link to account/CMMS | Ongoing cycle | Quicker parts tracking/replacement |
Good handling and careful commissioning prolong service life and keep Resilient Seated Gate Valve in top shape.
Specify the Right Iron Gate Valve with Me at Yaxing Valve
Send line size, pressure, and flow targets so I can match the right series/type to your duty and temperature envelope.
My concise checklist speeds approvals: end type, inside-screw vs non-rising, and handwheel orientation. I record stem/handwheel and screw details to guide installation.
View the images gallery for high-resolution images and a clean gallery layout that shows clearance and operator reach. Create an account so I can save specs, track valves by tag, and link drawings and a one-page PDF for the field.
Reach out for a quick quote; I’ll confirm stock/lead times, suggest series alternatives, and help finalize your order as you review the gallery. I use cookies only to keep your account session and cart ready.
